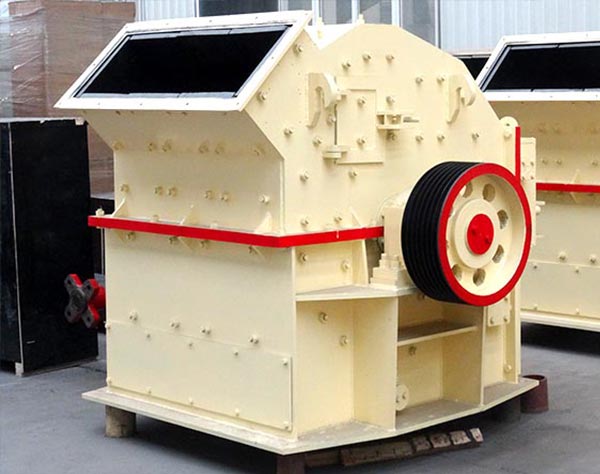

High efficiency fine crusher
Factory direct sales:Yes
Delivery method:Sea/land
Product Introduction The impact crusher is a new type of crusher developed by our company which absorbs the advanced technology at home and abroad and combines the specific conditions of the domestic sand industry and mining industry.It use
- +8613607653853
- 7*24 hours service hotline
Product Introduction

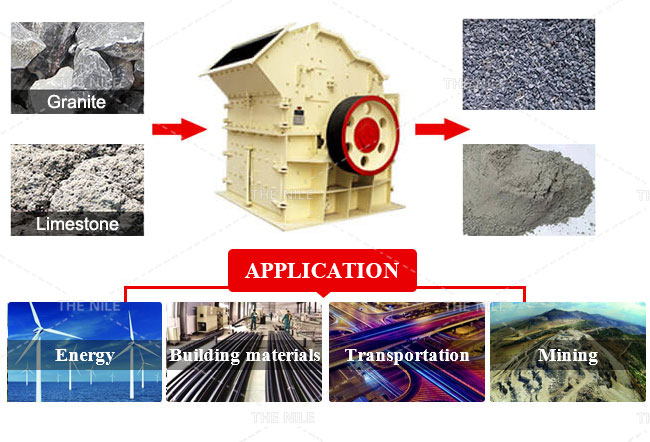

High efficiency fine crusher is the most effective and reliable gravel machine. The Nile’s fine crusher could applies to artificial sand, highway, railway, water conservancy, airport, construction, cement, refractory, metallurgical and other industries for the production of superior quality stone. Suitable for crushing granite, basalt, limestone, river gravel, cement clinker, quartz, iron ore, bauxite and other minerals.
High Efficiency Fine crusher Working principle:
When the Fine Crusher is working, materials are crushed primarily in the first crushing chamber by the high speed moving rotor against the hammer, and then enter the secondary chamber for fine crushing, at last, the final materials are discharged.
Technical Data of the High efficiency fine crusher
| Model | Input Size (mm) | Output Size (mm) | Quantity of hammers | Capacity (t/h) | Power (kw) | Dimension (m) |
| 800×400 | ≤120 | ≤5 | 12 | 30-40 | 37-45 | 2.1×1.4×1.7 |
| 800×600 | ≤180 | ≤5 | 18 | 40-50 | 45-55 | 2.1×1.62×1.7 |
| 800×800 | ≤180 | ≤5 | 24 | 50-70 | 45-55 | 2.1×1.84×1.96 |
| 1010×1010 | ≤180 | ≤5 | 30 | 60-75 | 55-75 | 2.1×1.84×1.96 |
| 1200×1000 | ≤180 | ≤5 | 30 | 100-110 | 90-110 | 2.45×1.6×1.96 |
| 1200×1200 | ≤180 | ≤5 | 24 | 120-150 | 110-132 | 3.0×2.16×2.5 |
| 1400×1400 | ≤180 | ≤5 | 24 | 160-200 | 132-160 | 3.0×2.36×2.55 |
| 1600×1600 | ≤190 | ≤5 | 24 | 180-250 | 220-250 | 3.0×2.76×2.5 |
| 1800×1800 | ≤190 | ≤5 | 24 | 220-290 | 280-315 | 3.0×3.26×3.15 |
