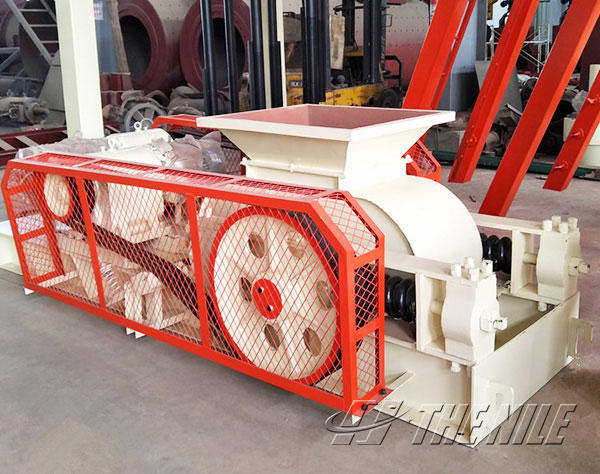

2-Roll crusher
If you need help please contact us!
Factory direct sales:Yes
Delivery method:Sea/land
Features of the product (a simple structure of equipment and little too much crushed phenomena) The profile of the tooth and the dimensional arrangement on the roller surface of the twin roll crusher can be changed to suit the nature of the
- +8613607653853
- 7*24 hours service hotline

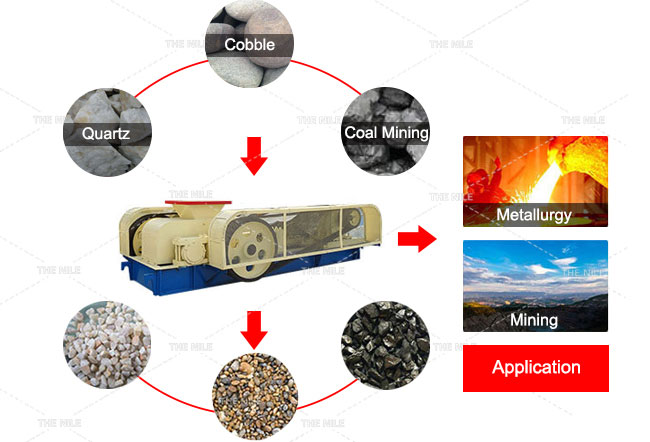

2-roll crusher is suitable for rough and intermediate crushing brittle materials, such as cement, chemical industry, electric power, mine, building materials and metallurgy. The size of feeding material is large, output size can be controlled, and it is possible to effectively destroy the material whose compressive strength is less than 160 MPa
The profile of the tooth and the dimensional arrangement on the roller surface of the twin roll crusher can be changed to suit the nature of the material. Intermediate and fine grinding can be performed on medium and soft ore. For example, in a sulfuric acid plant, sulfuric iron ore is usually crushed for the first time by a jaw crusher, so that the diameter is 20 ~ 30 mm, and then a two-roll crusher for secondary crushing is introduced to make the ore diameter 5 mm or less and meet the requirements of a boiling furnace.
The profile of the tooth and the dimensional arrangement on the roller surface of the twin roll crusher can be changed to suit the nature of the material. Intermediate and fine grinding can be performed on medium and soft ore. For example, in a sulfuric acid plant, sulfuric iron ore is usually crushed for the first time by a jaw crusher, so that the diameter is 20 ~ 30 mm, and then a two-roll crusher for secondary crushing is introduced to make the ore diameter 5 mm or less and meet the requirements of a boiling furnace.
Technical Data of the 2-Roll crusher
| Model | Feeding size | Discharging size | Capacity | Motor power | weight |
| （мм） | （мм） | (t/h) | (kw) | (т) | |
| 2PGC450×500 | 300 | 15-75 | 20-45 | 7.5×2 | 4.2 |
| 2PGC600×750 | 400 | 15-125 | 30-80 | 18.5×2 | 7.8 |
| 2PGC600×900 | 400 | 15-125 | 40-100 | 18.5×2 | 8.4 |
| 2PGC600×1200 | 400 | 15-125 | 50-120 | 22×2 | 11.2 |
| 2PGC800×1000 | 400 | 20-150 | 80-180 | 22×2 | 12.6 |
| 2PGC800×1200 | 400 | 20-150 | 100-220 | 30×2 | 15.2 |
| 2PGC900×900 | 500 | 30-150 | 80-180 | 30×2 | 14.5 |
