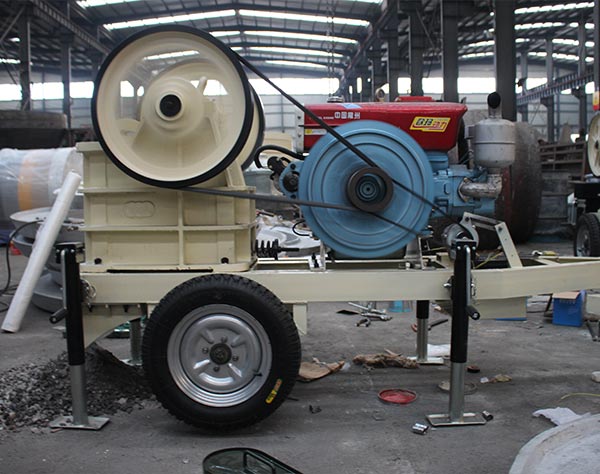

Small mobile diesel engine jaw crusher
Factory direct sales:Yes
Delivery method:Sea/land
Small Mobile Diesel Engine Jaw Crusher Working Principle Diesel Engine jaw crusher is powered by diesel engine, then belt pully will be driven, transmit to fixed and movable jaw, when the angle between fixed and movable jaw become smaller,
- +8613607653853
- 7*24 hours service hotline
Diesel Engine jaw crusher is powered by diesel engine, then belt pully will be driven, transmit to fixed and movable jaw, when the angle between fixed and movable jaw becomes smaller, stones will be crushed.
Technical Data of the Small mobile diesel engine jaw crusher
|
model
|
Input Size |
Output Size |
Discharging Range |
Capacity |
Power |
Weight |
Dimension |
|
PE-150×250 |
150×250 |
120 |
10-40 |
1-4 |
5.5 |
1.1 |
880×750×940 |
|
PE-150×750 |
150×750 |
120 |
10-40 |
10-20 |
15 |
2.2 |
1260×1400×900 |
|
PE-250×400 |
250×400 |
210 |
20-60 |
5-20 |
15 |
3 |
1300×1090×1270 |
|
PE-400×600 |
400×600 |
340 |
40-100 |
16-60 |
30 |
7 |
1730×1730×1630 |
|
PE-500×750 |
500×750 |
425 |
50-100 |
40-110 |
55 |
12 |
1980×2080×1870 |
