Compound crusher
If you need help please contact us!
Factory direct sales:Yes
Delivery method:Sea/land
Product characteristics: The Nile compound crusher, is a kind of non-sieve plate, adjustable fine crushing equipment, is popular used in crushing processing line and sand making line.It is mainly composed of frame, transmission, moving cone
- +8613607653853
- 7*24 hours service hotline
Product introduction:

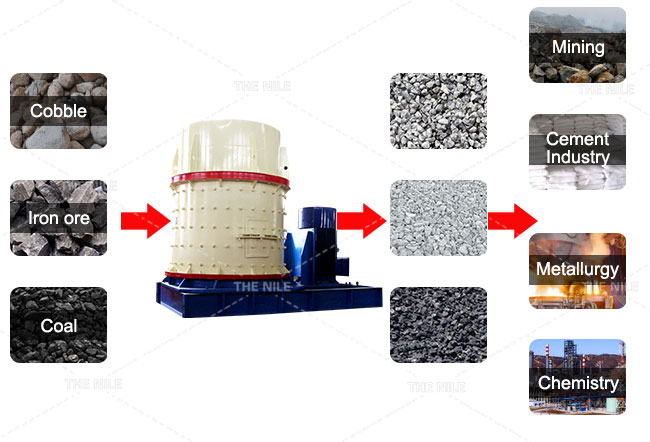

The Nile compound crusher, is a kind of non-sieve plate and adjustable fine crushing equipment. It is widely used in mining, ceramics, metallurgy, refractory, cement, coal and other industries, popular used in crushing processing line and sand making line. Mainly composed of frame, transmission, moving cone, lubrication system, hydraulic system and so on.
The Nile compound crusher, is a kind of non-sieve plate and adjustable fine crushing equipment. It is widely used in mining, ceramics, metallurgy, refractory, cement, coal and other industries, popular used in crushing processing line and sand making line. Mainly composed of frame, transmission, moving cone, lubrication system, hydraulic system and so on.
Working principle
The material in the upper part of the machine perpendicular drops into the high speed rotating impeller,and under the high speed centrifugal force, it produces high speed impact and comminution with other parts of the material which distributes in the shape of umbrella around the impeller vertical composite crusher. The impeller and housing will be crushed by swirl impact and friction between the impeller and housing for many times, which will be discharged directly from the bottom, forming a closed circuit multiple cycles, and controlled by screening equipment to achieve the required product size.
The material in the upper part of the machine perpendicular drops into the high speed rotating impeller,and under the high speed centrifugal force, it produces high speed impact and comminution with other parts of the material which distributes in the shape of umbrella around the impeller vertical composite crusher. The impeller and housing will be crushed by swirl impact and friction between the impeller and housing for many times, which will be discharged directly from the bottom, forming a closed circuit multiple cycles, and controlled by screening equipment to achieve the required product size.
Technical Data of the Compound crusher
Model | PFL-800 | PFL-1000 | PFL-1250 | PFL-1500 | PFL-1750 | PFL-2000 |
MAX Feeding Size（mm） | 100 | 120 | 150 | 180 | 200 | 220 |
Output Size（mm） | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 | ≤5 |
Capacity(t/h) | 10/20 | 20-40 | 40-70 | 70-100 | 100-160 | 130-190 |
Spindle speed(r/min) | 934 | 769 | 530 | 495 | 424 | 370 |
Motor Power(kw) | 22 | 37 | 75 | 132 | 160 | 185 |
Dimensions(L×W×H)(mm) | 2100×1200×1700 | 2600×1400×1900 | 2800×1600×2100 | 3100×1900×2200 | 3710×2360×2390 | 4100×2660×2620 |
