Plate and Frame Filter Press machine

If you need help please contact us!

Factory direct sales:Yes

Delivery method:Sea/land

Product description Plate and frame filter press is industrial equipment used to achieve the separation of solids and liquids. They are generally operated intermittently, with large investment in infrastructure equipment and low filtration

+8613607653853
7*24 hours service hotline
Product description
Plate and frame filter press is industrial equipment used to achieve the separation of solids and liquids. They are generally operated intermittently, with large investment in infrastructure equipment and low filtration capacity. The filter press equipment currently on the market mainly includes plate and frame filter presses, membrane filter presses, and chamber filter presses. However, because of its advantages such as large filtration driving force, high solid content of filter cake, clear filtrate, high solid recovery, and low consumption of chemicals, filter presses are widely used in chemical, dye, petroleum, ceramics, pharmaceutical, and manufacturing Sugar, food, starch, sugar, paint, metallurgy and sewage treatment or tailings treatment in various industries.

Working principle
Plate and frame filter press is an intermittent solid-liquid separation equipment. It consists of a frame, a filter and a transmission system. The filter plate and the filter frame are arranged to form a filter chamber. It is sent to each filter room, and the solid and liquid are separated through the filter medium. Filter structure is an important structure of filter press, which includes: filter plate, filter cloth, pull plate system and unloading system. The function of the filter structure is to contact the suspended matter input by the feed pump with the filter cloth, so that the liquid is separated from it and discharged out of the equipment through the circuit designed by the filter plate, and the solid is blocked by the filter cloth in the filter chamber. Accumulates into a filter cake.


Technical Data of the Plate and Frame Filter Press machine

Technical Parameters
Model Filtering area(㎡) Filter chamber quantity(pcs) Filter plate model(mm) Filter cake thickness(mm) Filter chamber volume(m³) Filtration pressure(Mpa) Dimension(mm) Power(kw) Weight(kg)
XMZ100-1000-30U 100 58 1000×1000 30 1.635 0.5-1.6 5890×1500×1350 2.2 4360
XMZ100-1000-30U 110 54 1090×1090 30 1.65 0.5-1.6 5760×1590×1450 5060
XMZ100-1000-30U 120 59 1090×1090 30 1.8 0.5-1.6 6065×1590×1450 5360
XMZ150-1250-30U 150 56 1250×1250 30 2.28 0.5-1.6 6200×1750×1600 4.0 7500
XMZ180-1250-30U 180 67 1250×1250 30 2.72 0.5-1.6 7230×1750×1600 8500
XMZ200-1250-30U 200 74 1250×1250 30 3.0 0.5-1.6 7690×1750×1600 9000
XMZ250-1250-30U 250 93 1250×1250 30 3.8 0.5-1.6 9015×1750×1600 10500
XMZ300-1500-30U 300 74 1500×1500 30 4.48 0.5-1.6 9120×2330×1800 5.5 19200
XMZ350-1500-30U 350 87 1500×1500 30 5.25 0.5-1.6 10040×2330×1800 21300
XMZ400-1500-30U 400 99 1500×1500 30 5.96 0.5-1.6 10890×2330×1800 23300
XMZ450-1500-30U 450 112 1500×1500 30 6.74 0.5-1.6 11815×2330×1800 25400
XMZ500-1500-30U 500 125 1500×1500 30 7.51 0.5-1.6 12740×2330×1800 27500
XMZ600-2000-40U 600 113 2000×1500 40 11.98 0.5-1.2 13010×2620×2650 11 37855
XMZ700-2000-40U 700 133 2000×1500 40 14.08 0.5-1.2 14610×2620×2650 41074
XMZ800-2000-40U 800 110 2000×2000 40 11.99 0.5-1.2 13540×3030×2400 11 43972
XMZ1000-2000-40U 900 127 2000×2000 40 14.90  0.5-1.2 14920×3030×2400 56000

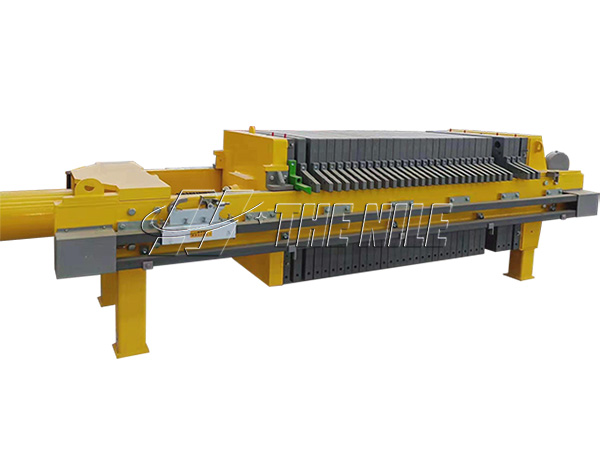

Picture of Plate and Frame Filter Press machine
