Disc vacuum filter

Product description

The disc vacuum filter is a device that uses a vacuum as a filtering power to perform solid-liquid separation of the slurry. It is suitable for the filtration and dehydration of fine particle materials in industries such as mining metal ores, non-metal ores, environmental sludge, cement, and building materials.



Working principle

The disc vacuum filter consists of discs of individual fan segments. Each fan-shaped sheet is an independent filter unit, and a filter cloth is made of filter cloth to cover the fan-shaped sheet to form a filter chamber. The filter disc is driven by a motor through a speed reducer and an open gear transmission. The filter disc rotates clockwise. The slurry in the filter chamber in the adsorption zone uses a vacuum pump to create a pressure difference on both sides of the filter medium. After the cake, the stirrer is rotated to prevent solid precipitation. After the filter cake leaves the liquid surface, the water is continuously removed under the action of vacuum. The filtrate passed through the filter cloth, passed through the filtrate tube, and was discharged from the dispensing head. In the discharge area, the filter cake is discharged into the discharge trough by back-blowing discharge, and the whole operation process is continuously circulated.


Technical Data of the Disc vacuum filter

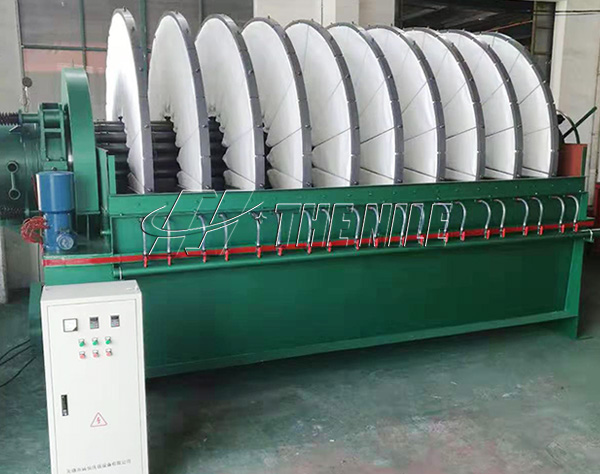

Picture of Disc vacuum filter
