Magnetic Separator

If you need help please contact us!

Factory direct sales:Yes

Delivery method:Sea/land

Product Description Magnetic separator is one essential equipment in the ore dressing process which can separate raw materials with different magnetic rigidities.It is mainly used for screening the magnetic and non-magnetic material from th

+8613607653853
7*24 hours service hotline
Product Description
Magnetic separator is one essential equipment in the ore dressing process which can separate raw materials with different magnetic rigidities.It is mainly used for screening the magnetic and non-magnetic material from the mineral powder and mineral pulp.The magnetic system of a magnetic separator is a compound of fine ferrite material and rare earth magnets.The average magnetic induction intensity of the surface of the cylinder is 100~600mT.

Main Type Sand Application of Magnetic Separator
1.Magnetic separator is suitable for the wet magnetic separation of the materials whose granularity is below 3mm such as magnetite, pyrrhotite, calcined ore and ilmenite and can also be used for removing iron from the materials such as coal, non-metal ore,and building material.
2.The permanent magnetic force tumbler is suitable for:
After medium and fine crushing, the magnetic pulley is used for eliminating the wall rock in the iron ore to improve the fineness.
To the un-deoxidized ore and send back for re-agglomeration.
To eliminate iron in the ceramic industry for improving the ceramic quality.
To eliminate iron in coal, foundry sand, refractory, and other industries.

Working Principle
The pulp flows into the cell body from the pulp box, and under the water flow of the feeding spray pipe, the mineral grain will go into the feeding area of the cell body in the loose condition. In the magnetic field, the magnetic ore particles will have magnetic gathering and form magnet group or maget chain which is influenced by the magnetic forece inside the pulp and moves to the magnetic pole and finally is absorbed onto the cylinder.


Technical Data of the Magnetic Separator

Technical Parameters
Model CTB612 CTB618 CTB712 CTB718
Diameter(mm) Φ600 Φ600 Φ750 Φ750
Length of drum(mm) 1200 1800 1200 1800
Granularity(mm) 0-0.4 0-0.5
Feed density(%) 20-25
Capacity Dry ore(t/h) 10-15 15-20 30-35
Pulp(m³/h) 10-15 15-20 30-35
Power(kw) 2.2 3
Weight(kg) 1200 1500 1830 2045
Overall dimensions(mm) 2550*1300*1250 3150*1300*1250 2770*1780*1600 3350*1780*1600

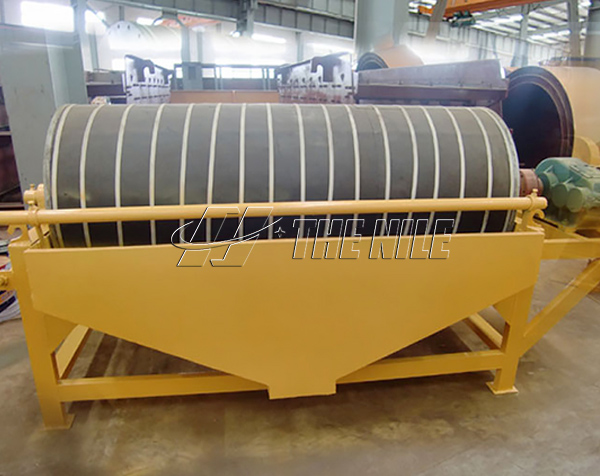

Picture of Magnetic Separator
