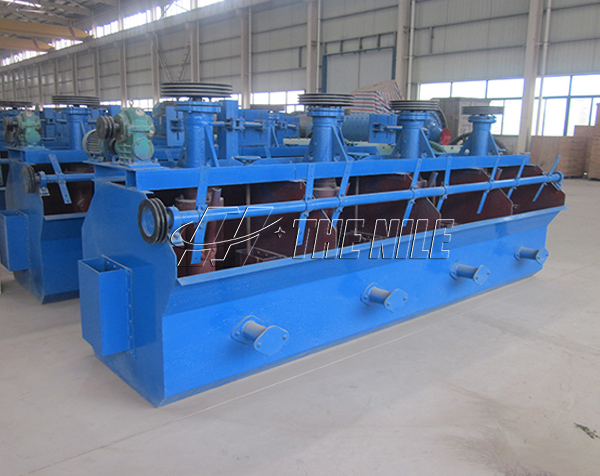

Flotation separator
If you need help please contact us!
Factory direct sales:Yes
Delivery method:Sea/land
ProductdescriptionFlotation separator is a machine for selectively separating hydrophobic materials from hydrophilic.On the basis of absorbing advanced experience both at home and abroad.The mechanism design is optimized by Nile Machinery,for the best performance of flotation separator.Appl
- +8613607653853
- 7*24 hours service hotline
Product description Flotation separator is a machine for selectively separating hydrophobic materials from hydrophilic.On the basis of absorbing advanced experience both at home and abroad.The mechanism design is optimized by Nile Machinery,for the best performance of flotation separator.
Application
Our Flotation Machine is the latest design,it can be used to separate nonferrous metal,ferrous metal,noble metal,nonmetallic mine,chemical material and recycle mine.
Working principle
The impeller is rotated by the V-belt of motor and produces negative pressure by centrifugal function.Enough air is sucked to mix slurry,and slurry mixes drugs at the same time.Mineral sticks on the bubble completely and floats on the surface of slurry to form mineralized bubbles.The useful bubble is scraped out by adjusting flashboard height and controlling the liquid surface.
Technical Data of the Flotation separator
| Model | Volume(m³) | Impeller diameter(mm) | Capacity(t/h) | Power of motor(kw) | Four chutes weight(kg) | Single chute overall diamension(mm) | |
| Strring motor | Scraper motor | ||||||
| XJ-0.13 | 0.13 | 200 | 0.05-0.16 | 1.5 | 0.55 | 1272 | 1120*1140 |
| XJ-0.23 | 0.23 | 250 | 0.12-0.28 | 1.5 | 0.55 | 1558 | 1190*1238 |
| XJ-0.35 | 0.35 | 300 | 0.15-0.5 | 2.2 | 0.55 | 1720 | 1350*1327 |
| XJ-0.62 | 0.62 | 350 | 0.3-0.9 | 3 | 1.1 | 3041 | 1535*1760 |
| XJ-1.1 | 1.1 | 500 | 0.6-1.6 | 5.5 | 1.1 | 5204 | 1970*2088 |
| XJ-2.8 | 2.8 | 600 | 1.5-3.5 | 11 | 1.1 | 9295 | 2450*2295 |
| XJ-5.8 | 5.8 | 750 | 5-7 | 22 | 1.5 | 13597 | 3250*2485 |
