Simple operation concentrator - 6S shaking table

Time:2019/01/16 author:admin News List

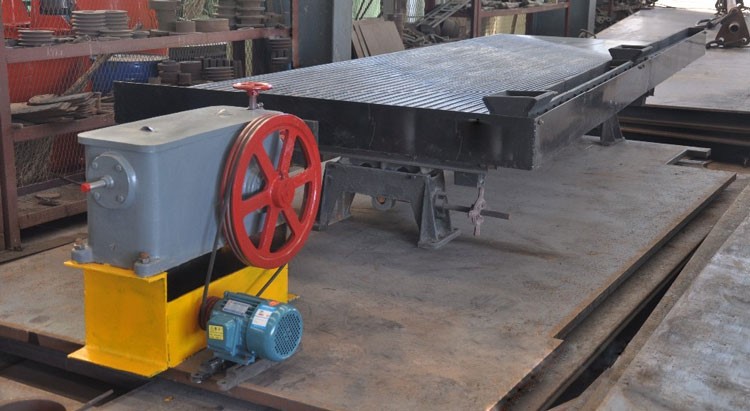

Simple operation concentrator - 6S shaking table
Shaking table which is also called table concentrator, is a gravity separation device for fine minerals . 6s Shaking table is effective in processing precious and base metal, rare metal and non-metallic minerals, widely used in separation of Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum etc. Our shaking table can produce mob type, the coarse ore deck is designed for recovering particles size from 0.5 mm to 2 mm; the fine sand deck is designed for recovering fine particles in the range of 0.074 mm to 0.5 mm; the slime deck is designed for recovering super extremely fine particles in the range of 0.037 mm to 0.074 mm.
6s shaking table working principle:
The working principle of Shaking Table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove),to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced
The Nile’s shaking table Main Features:
1.High recovery ratio
2.High concentration ratio
3.Easy installation
4.Simple operation
5.Deck constructed of fiber glass
6.Seven different decks to choose
7.Long working life
8.Adjustable stroke length and speed.
