Cheap quiet dc 12v 24v portable electric hoist winch 5 ton load weight

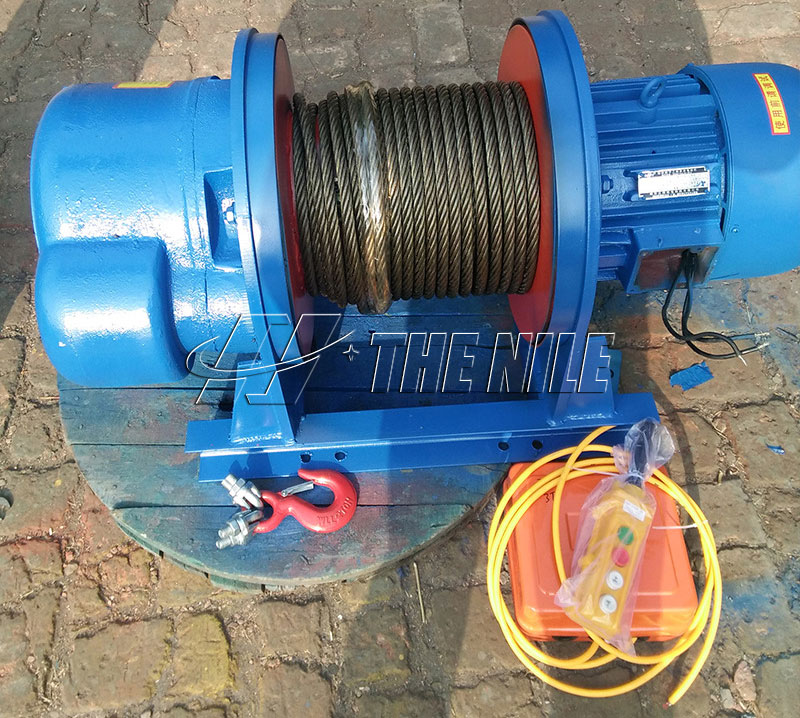

Electric winch consists of motor, coupling, brake, gearbox and drum, mounted together on the rack, it is a device that mechanically drives a reel and winding rope to complete the traction work. It can vertical lift or horizontal and inclined drag heavy object. Electric winch widely used in construction, water conservancy, forestry, mines, docks and other materials lifting or towing. Electric winch can customize the volume, quantity, direction of rope, the single row rope, lifting speed, fixed direction, same rise and drop, and working voltage, etc., It can also be equipped with wire rope, electric control box, handle switch, hook, wireless remote control, etc. Braking principle:
Electric winch adopts cone-type electromagnetic braking device, the motor working brake is separated, the motor stop braking is closed immediately, which plays the role of quick braking.
The electric winch can be used alone or as a component of machinery such as lifting, road building and mine lifting, large amount of rope winding, easy to move and simplicity of operator. Advantages:
1, power full
2, long service life
3, large rope winding capacity
4, fast speed
5, simple fixed mode
6, 360 °arbitrary rope
7, small bulk
8, high price-to-performance ratio
Model DT-1T DT-2T DT-3T DT-5T DT-10T
Rated load weight(t) 1 2 3 5 10
Lifting altitude(m) 1-100
Lifting speed(m/min) 16/8 16/8 16/8 16/8 14/7
Rope diameter (mm) 7.7 11 13 15.5 19.5
Rated voltage 380V 50HZ
Power(kw) 1.5 3 4.5 7.5 13
Bare metal weight(kg) 85 140 178 258 650

PRECAUTIONS:
1.Read the instructions before using.
2.Check the safety technical condition of vulnerable parts such as lifting hook, wire rope and speed reducer before use.
3.When in use, the idle persons shall be prohibited from entering the dangerous area for hoisting and special persons shall be assigned to care.
4.The items to be placed or tied at the time of lifting must be in accordance with the requirements of the hoisting regulations.
5.The lifting operation is prohibited under the condition that the brake, the safety device is out of order, the hook nut anti-loosening device is damaged, the damage of the steel wire rope reaches the scrap standard, and the like.
6.The lifting operation shall not be carried out when the suspension is bound, the suspension is unfastened or is not balanced, and the lifting operation cannot be carried out when no cushion is arranged between the edge and the edge of the hanging object and the steel wire rope.
7.The lifting operation shall not be carried out when the site, the object and the command signal are not visible.
8.The suspension, the basket, the spreader and the cable shall not be suspended in the air at the time of suspension or rest.
9.When the hoisting machinery works, the hoisting machinery shall not be inspected and repaired. The brake of the lifting mechanism shall not be adjusted without load.
