How Raymond Mill works

Time:2020/03/20 author:admin News List

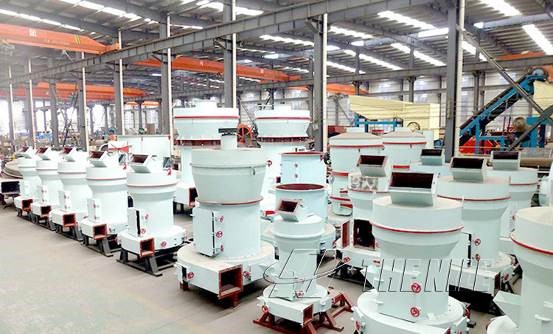

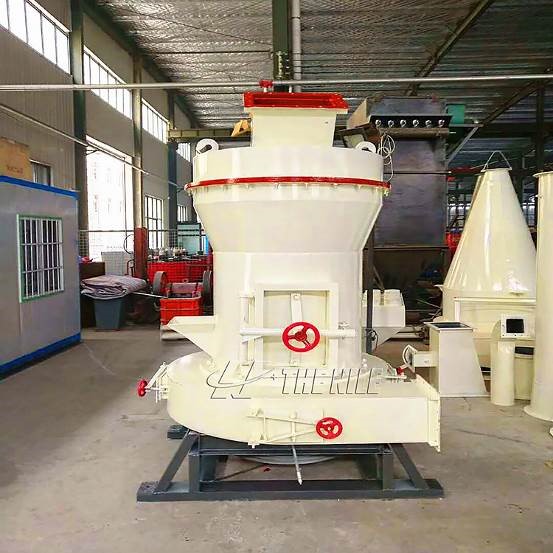

Raymond mill is a kind of heavy machinery equipment widely used in mining development industry. Its structure is simple and its performance is strong. It is mainly composed of main machine, analyzer, micron cyclone separator, finished cyclone separator, fan and air duct. Among them, the main machine is mainly composed of blade, grinding roller, grinding ring, casing, frame and air inlet worm. Composed of shells.
Compared with other grinding equipment, Raymond mill has a great advantage in performance. When the Raymond mill is working, the materials to be crushed are added into the machine from the hopper on the side of the machine casing, relying on the grinding roller device suspended on the main frame of the host machine, revolving around the vertical axis, while rotating itself, due to the centrifugal force during rotation The role of the grinding roller is to swing outward and press tightly against the grinding ring, so that the shovel blade picks up the material and sends it between the grinding roller and the grinding ring. The purpose of crushing the material is achieved by the rolling and rolling of the grinding roller.

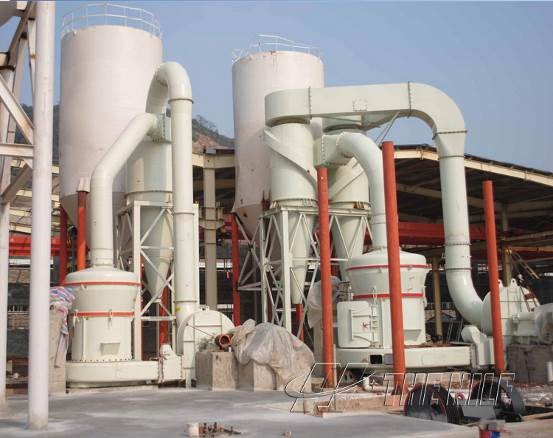

Air separation process: After the material is ground, the fan blows the wind into the main casing, blows up the powder, and sorts it by the analyzer placed above the grinding room. The over-thickness material falls into the grinding room and is reground. The degree of compliance with the wind enters the cyclone collector, and it is discharged through the powder outlet after collection, which is the finished product. The air flow is returned to the fan by the return air pipe at the upper end of the large cyclone collector. The air path is cyclic and flows under negative pressure. The increased air volume of the circulating air path is discharged through the exhaust pipe between the fan and the host and enters the small cyclone collection Device for purification.
At present, the application of Raymond mill has been gradually promoted, and its mechanical equipment has been widely used in barite, talc, marble, limestone, activated carbon, cement, glass, gypsum, dolomite, potassium feldspar, calcite and other molybdenum. The non-flammable and explosive mineral, chemical, construction and other industries with a hardness of not more than 9.3 and a humidity below 6 have high production quality and good benefits, and have become part of the mining and machining industries.
The above is the content of this sharing. If you want to buy Raymond mill, or you want to know the price of Raymond mill, you can contact The Nile Machinery's Email and WhatsApp.
